Bunching onion (Allium fistulosum L.) is a very important spicy vegetable. It is an essential vegetable and condiment in the daily life of Chinese. It has pungent taste, warm nature, and is suitable for raw or cooked food. It has health functions such as appetizing and digestion, anti-cancer, anti-tumor, cardiovascular protection, lowering blood pressure, improving human immunity and preventing aging.

Cytoplasmic male sterility (CMS) is a maternal genetic trait, which is mainly manifested in the inability of plants to produce functional pollen. This phenomenon was first discovered by Jones in Allium cepa L. in 1936 (Jones and Emsweller, 1936; Jones and Clarke, 1943). Studies have shown that plant CMS is related to mitochondrial gene abnormalities. In 1976, Levings and Pring found that there are obvious differences in enzyme digestion patterns between mitochondrial DNA in male fertile cytoplasm and male sterile cytoplasm of maize (Zea mays L.), which directly proved that maize CMS is closely related to mitochondrial DNA gene differences at the molecular level. The mitochondrial genomes of higher plants are often rearranged or recombined in the process of evolution, resulting in more chimeric open reading frames (ORFs), in which genes that induce CMS may be produced (Hanson and Bentolila, 2004). atp6 gene is an important component of F1F0-ATP synthase system (Ji et al., 2013). Sequence mutation will affect the synthesis of coding amino acids, affect the function of ATP synthase, interfere with pollen development, and lead to the occurrence of plant CMS (Dietrich et al., 2003).

In order to further study the relationship between atp6 gene and cytoplasmic male sterility in bunching onion, the sequence of atp6 gene in bunching onion was obtained by homologous cloning, and its protein secondary structure and atp6 gene expression at various stages of growth and development were analyzed and compared, so as to provide a theoretical basis for revealing the molecular mechanism of CMS in bunching onion.

1 Results and Analysis

1.1 Quality detection of total RNA in root, leaf and flower of bunching onion

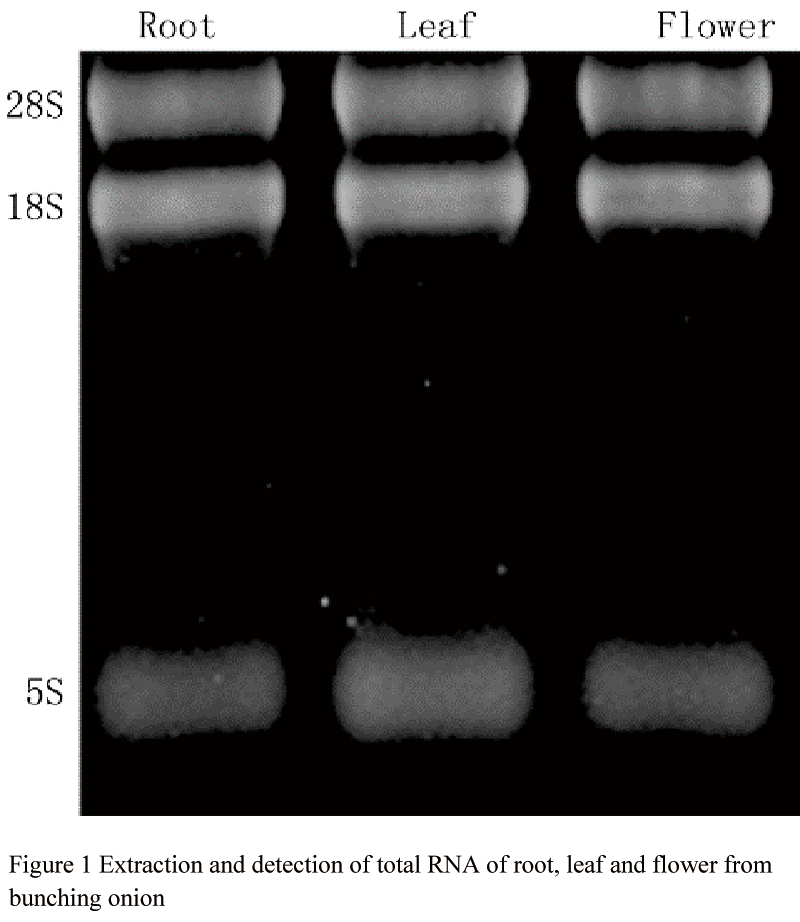

The extracted total RNA was determined by UV spectrophotometer. The ratio of OD₂₆₀ to OD₂₈₀ was in the range of 1.9~2.0, and the ratio of A260 to A230 was in the range of 2.0~2.3, indicating that the purity of the extracted RNA was high. After 1% agarose gel electrophoresis (Figure 1), the results showed that the 28S and 18S bands were clear, indicating that the RNA integrity was good and could be used for subsequent tests.

1.2 Sequence analysis of atp6 gene in bunching onion

Primers atp6-F1 and atp6-R1 were designed by using the atp6 pseudogene sequence of bunching onion in GenBank (GenBank Accession No.JQ283733.1) to amplify the total DNA of male sterile line 980128A and maintainer line 980128B in bunching onion. The PCR amplification products were detected by 1.0% agarose gel electrophoresis. About 800 bp fragments were obtained on both male sterile line and maintainer line (Figure 2), which were consistent with the expected fragment size and clear bands. The sequencing results showed that the amplified fragments were 806 bp in length. The flanking sequences of 5 'and 3' were obtained by TAIL PCR. The start codon and stop codon were found, and the full-length sequence of atp6 gene was 819 bp (Gao et al., 2018). Through monoclonal sequencing, it was found that S-type (sterile) cytoplasm of bunching onion had T-atp6 genotype (GenBank No. KR973431), N-type (fertile) cytoplasm had T-atp6 and A-atp6 genotype (GenBank No. KR973430), and some N-type cytoplasm had only A-atp6 genotype (Figure 3).

1.3 Amino acid sequence analysis of atp6 gene male sterile line and maintainer line in bunching onion

We compared the differential sequences of the two atp6 genes and atp6 pseudogene sequences (GenBank No. JQ283733.1) (Figure 4). It was found that A-atp6 and T-atp6 had one more T base at site 170 than JQ283733.1 sequence, thus the JQ283733.1 sequence that could not encode amino acids became a complete atp6 gene. There is a G/T base difference at site 194. The sequence of JQ283733.1 is T, and both A-atp6 and T-atp6 are G. There is an A/T base difference between A-atp6 and T-atp6 at position 171. Both A-atp6 and JQ283733.1 sequences are A, and T-atp6 is T. The atp6 gene of bunching onion encodes 272 amino acids. Leu (L; A-atp6) at position 57 is mutated to Phe (F; T-atp6) due to the existence of 171 A/T polymorphism.

1.4 Characteristics of atp6 gene coding protein in bunching onion

The secondary structure of atp6 gene protein in bunching onion was predicted by SOPMA online software. The results showed that the secondary structure of ATP6 protein of A/T haplotype was composed of α-helix, extend strand, β-turn and random coil (Table 1). Because the 171^st base of atp6 gene sequence was mutated from a maintainer line to T of sterile line, leucine (Leu) at 57^th position of amino acid sequence maintainer line was mutated to phenylalanine (Phe) of sterile line, so that the secondary structure proportion of ATP6 protein in bunching onion changed slightly.

The transmembrane structure of the two haplotypes of A-ATP6 and T-ATP6 in bunching onion was predicted by the online analysis software TMHMM. The results showed that the number of transmembrane domains of the two haplotypes of atp6 gene coding proteins did not change due to A/T mutation, and the 5 transmembrane domains still existed (Figure 5).

1.5 RT-PCR analysis of atp6 gene male sterile line and maintainer line of bunching onion at different developmental stages

Quantitative expression analysis of atp6 gene in male sterile line and maintainer line of bunching onion (Figure 6) showed that during the whole plant development process, the expression of atp6 gene in root system showed a trend of first increasing and then decreasing, reaching the maximum value at flowering stage, and the maintainer line was 1.14 times than that of male sterile line; The expression of atp6 gene in leaf/flower decreased gradually during the whole growth period, and reached the highest at seedling stage. The maintainer line was 1.96 times than that of male sterile line.

2 Discussion

Many studies have shown that atp6 gene is an important candidate gene affecting plant CMS. Wang et al. (2015) compared and analyzed 33 mitochondrial genes and 22 open reading frames in K-type and V-type male sterile lines and maintainer lines of wheat (Triticum aestivum L.) and found that atp6 gene has great differences between maintainer lines and male sterile lines. Tan et al. (2018) and Fabio et al. (2020) sequenced and assembled the mitochondrial genome of fennel, and found two types of atp6 gene sequences, of which atp6- only exists in the male sterile mitochondrial genome, and atp6+ only exists in the male fertile mitochondrial genome. However, atp6+ was also detected in the male sterile material, which was speculated to exist in the nucleus. This study showed that A-atp6 existed only in male fertile materials of bunching onion, and T-atp6 existed not only in male sterile materials of bunching onion, but also in some male fertile materials. Because this study is based on the total DNA of bunching onion, it is uncertain whether T-atp6 in some male fertile materials exists in the cytoplasm or in the nucleus, and whether there are differences in pollen fertility and fertility between plants with A-atp6 gene and plants with partial T-atp6 gene. These contents need to be further studied and observed.

Some single base mutations in some plant genes may lead to male sterility. Zhou et al. (2012) studied the atp6 gene of bunching onion sterile line and maintainer line, and found that there was a single base mutation in the upstream and inside of bunching onion atp6 gene respectively. The first A/G mutation was located at the 467^th base upstream of the start codon, and the second A/C mutation was located at the 92^nd base inside the atp6 gene. This mutation resulted in the mutation of the coding amino acid from serine (maintainer line, Ser) to tyrosine (sterile line, Tyr). Wang et al. (2014) also found the C/A mutation at the same site within the gene through the study on the atp6 gene of bunching onion sterile line and maintainer line. The study believed that the mutation site appeared randomly between the sterile line and maintainer line, which may be related to the test material. This study found that there was A/T polymorphism in the atp6 gene between the male sterile line and the maintainer line of bunching onion. Leu (L; A-atp6) was mutated to Phe (F; T-atp6), which led to a slight change in the proportion of protein secondary structure. Although it did not lead to the change of transmembrane domain, it could not be ruled out that this single base mutation might lead to male sterility, which needs to be verified by further genetic transformation.

Zhou et al. (2012) compared the expression of bunching onion atp6 gene in male sterile lines and maintainer lines, and showed that in bunching onion flowering period, the expression of atp6 gene in male sterile lines tended to increase first and then decrease, while that in maintainer lines tended to decrease first and then increase; There was little difference between male sterile line and maintainer line at small bud stage and large bud stage, but there was a great difference at middle bud stage. Tan et al. (2018) studied the expression of carrot atp6 gene in male sterile lines and fertile lines at flowering stage. The expression of fertile lines at flowering stage tended to increase first and then decrease, while the expression of male sterile lines at the whole flowering stage changed little. The expression of atp6 gene in root was the highest at flowering stage, and that in leaf was the highest at seedling stage. The maintainer lines were higher than the male sterile lines. However, there was no significant difference in the amount of expression in flower buds between male sterile lines and maintainer lines. It is possible that this sample was taken in the early stage of flowering, and the period of differential expression has not yet reached.

3 Materials and Methods

3.1 Test materials

The male sterile line and maintainer line of Zhangqiu bunching onion were planted in the experimental base of Vegetable and Flower Research Institute of Shandong Academy of Agricultural Sciences. Fresh leaves and roots of bunching onion were sampled at seedling stage and bolting stage; Flower buds and new roots were sampled at the flowering stage and late flowering stage.

3.2 Extraction of genomic DNA and RNA from bunching onion

The rapid plant genomic DNA extraction kit was used for the extraction of bunching onion genomic DNA; The plant total RNA extraction kit is used for extracting the RNA from bunching onion, and the FastQuant cDNA first strand synthesis kit is used to synthesize single strand cDNA. The total DNA, RNA extraction kit and cDNA first strand synthesis kit are purchased from Tiangen Biotech (Beijing) Co., Ltd. Methods refer to the operating instructions.

3.3 Primer design, PCR amplification and sequencing of atp6 gene

According to the serial number of GenBank Accession No.JQ283733.1 in GenBank database, Primer Premier 5.0 was used to design primers atp6-F1 and atp6-R1 (Table 2). The primers were purified to PAGE and were synthesized by Boshang (Beijing) Biotech Co., Ltd. PCR reaction was carried out by TC-XP-D gene amplification instrument (produced by Bio-Rad Company), 20 μL in the reaction system, 2×Pfu Master Mix 10 μL. Upstream and downstream primers (10 μmol/L) were 1.0 μL, respectively. Sample DNA 50 ng; The reaction procedure, PCR product detection, recovery and purification of target fragments, cloning and other operations were carried out with reference to Gao et al. (2018), with slight changes. The TAIL-PCR amplification and the acquisition of two terminal sequences refer to Liu et al. (2007).

3.4 Sequence analysis of atp6 gene in bunching onion

The nucleotide sequence of atp6 gene was analyzed bioinformatics by DNAMAN and other software; The protein secondary structure and transmembrane structure were predicted by method of Liu et al. (2020).

3.5 RT-PCR analysis of atp6 gene in bunching onion

According to the atp6 gene sequence a pair of specific RT-PCR primers RT-atp6-F and RT-atp6-R were designed. Tublin was an internal reference, and the primer sequences were TUB-F and TUB-R (Table 2). The root, leaf and flower bud of CMS line and maintainer line in bunching onion were analyzed by Real-time quantitative PCR. RT-PCR reaction system was 25 μL system, including 12.5 μL SYBR Premix Ex TaqⅡ (TAKARA, Japan), upstream and downstream primers (10 μmol/L) each 1.0 μL. CDNA template (after 10 times dilution) 1.0 μL，0.4 μL Rox Reference DyeⅡ, 9.5 μL ddH₂O; The reaction procedure is as follows: pre denaturation at 95°C for 30 s; Then 95°C for 5 s, 60°C for 30 s, 40 cycles. Each sample was set to repeat for 3 times. The Real-time fluorescent quantitative PCR analysis was carried out using the Light Cycler system (Roche Light Cycler480). The relative expression of genes was calculated using the 2^-△△Ct method (Magnus et al., 2005).

Authors’ Contributions

WQH is the executor of this experimental research, completing data analysis and writing the first draft of the paper; ZRT participated in the experimental design and the analysis of experimental results; JSJ gave suggestions on experimental design; GLM is the designer and person in charge of this project, guiding the experimental design, data analysis, thesis writing, and completing the revision and finalization of the article. All authors read and approved the final manuscript.

Acknowledgements

The research was jointly funded by Shandong Agricultural Improved Variety Project (2019LZGC0703) and the Scientific Research Project of Jinan Academy of Agricultural Sciences (yy202001).

References

Dieterich J.H., Braun H.P., and Schmitz U.K., 2003, Alloplasmic male sterility in Brassica napus (CMS ‘Tournefortii-Stiewe’) is associated with a special gene arrangement around a novel atp9 gene, Molecular Genetics & Genomic Medicine, 269: 723-731
https://doi.org/10.1007/s00438-003-0886-3
PMid:12898218

Fabio P., Nicola V., Alessandro V., Gabriele M., and Gianni B., 2020, The mitochondrial genome assembly of fennel (foeniculum vulgare) reveals two different atp6 gene sequences in cytoplasmic male sterile accessions, International Journal of Molecular Science, 21: 4664
https://doi.org/10.3390/ijms21134664
PMid:32630002 PMCid:PMC7370444

Hanson M.R., and Bentolila S., 2004, Interactions of mitochondrial and nuclear genes that affect male gametophyte development, Plant Cell, 16(1): 154-169
https://doi.org/10.1105/tpc.015966
PMid:15131248 PMCid:PMC2643387

Gao L.M., Huo Y.M., Chen W., Wang Q.H., and Wu X., 2018, Identification of allelic variation in the atp6 gene and its use in developing molecular markers for distinguishing two cytoplasmic types of bunching onion (Allium fistulosum L.), Journal of Horticultural Science and Biotechnology, 93(5): 450-455
https://doi.org/10.1080/14620316.2017.1419832

Ji J.J., Huang W., Yin C.C., and Gong Z.H., 2013, Mitochondrial cytochrome c oxidase and F1F0-ATPase dysfunction in peppers (Capsicum annuum L.) with cytoplasmic male sterility and its association with orf507 and Ψatp6-2 genes, International Journal of Molecular Sciences, 14(1): 1050-1068
https://doi.org/10.3390/ijms14011050
PMid:23296278 PMCid:PMC3565306

Jones H.A., and Clarke A.E., 1943, Inheritance of male sterility in the onion and the production of hybrid seed, Hort Science, 43(5): 189-194

Jones H.A., and Emsweller S.L., 1936, A male-sterile onion, Hort Science, 34: 582-585

Levings III C.S., and Pring D.R., 1976, Restriction endonuclease analysis of mitochondrial DNA from normal and Texas cytoplasmic male-sterile maize, Science, 193(4248): 158-169
https://doi.org/10.1126/science.193.4248.158
PMid:17759255

L Y.F., P D.D., L Y.Y., J H.B., and C L.B., Identification and expression analysis of PIN family gene in Camellia sinensis, http://kns.cnki.net/kcms/detail/46.1068.S.20200120.1029.002.html

Liu Y.G., and Chen Y.L., 2007, High-efficiency thermal asymmetric interlaced PCR for amplification of unknown flanking sequences, Bio Techniques, 43(5): 649-656
https://doi.org/10.2144/000112601
PMid:18072594

Magnus L., Heiene N., and Charles H., 2005, Dynamic range and reproducibility of hepatitis B virus (HBV) DNA detection and quantification by cobas Taqman HBV, a real-time semiautomated assay, J Clin Microbiol, 43(8): 4251
https://doi.org/10.1128/JCM.43.8.4251-4254.2005
PMid:16081992 PMCid:PMC1233936

Tan G.F., Wang F., Zhang X.Y., and Xiong A.S., 2018, Different lengths, copies and expression levels of the mitochondrial atp6 gene in male sterile and fertile lines of carrot (Daucus carota L.), Mitochondrial DNA Part A, 29(3): 446-454
https://doi.org/10.1080/24701394.2017.1303492
PMid:28335670

Wang X.Q., Yang W.L., Pu M.Y., Liu D.C., Sun J.Z., Zhang W.D., Zhang A.M., and Gao Q.R., 2015, Comparative analysis of mitochondrial genes from wheat K- and V-type cytoplasmic male sterility lines, Fenzi Zhiwu Yuzhong (Molecular Plant Breeding), 13(8): 1673-1682

Wang Z.B., Huo Y.M., Miao J., Gao L.M., Liu B.J., Yang Y.Y., Wu X., and Cheng F., 2014, Cloning and Phylogenetic Analysis of atp6 Gene from Onion, Shandong Agricultural ences, 46(1): 10-14

Zhou X.J., Zhao R., and Wang Y.Q.,2012, Cloning and Expression Analysis of Candidate Gene atp6 from Allo-cytoplasmic Male Sterility Onion (Allium cepa L.), Journal of Shenyang Agricultural University，43(2):148-152.
