Hanlan (Cymbidium kanran) is a group of terrestrial orchids of Cymbidium genus in the family of Orchidaceae. It is mainly distributed in Zhejiang, Fujian, Taiwan, Guangdong and other places in China. It is one of the five most famous Chinese Cymbidium. The plant height is about 20~40 cm, and the flower diameter is about 3~6 cm. Cymbidium kanran is elegant and pleasant, with excellent humanistic appreciation value (Figure 1). Through investigation of its growth, it was found that the flowering mode of the Cymbidium kanran was different from that of other Chinese Cymbidium: (1) The buds of the Cymbidium kanran differentiated from August to October, and the flower buds blossomed directly after differentiation. Unlike Chunlan (C. goeringii), Huilan (C. faberi) and Molan (C. sinense), there was no dormancy of flower buds. (2) The flowering period was mainly from October to December, which happened to be at the stage of light weakening and temperature decreasing compared with other five Chinese Cymbidium; (3) The phenomenon of irregular flowering of different single plant of Cymbidium kanran, sometimes can be seen in summer. In conclusion, the flowering of the Cymbidium kanran cannot be simply attributed to a single environment or autonomous flowering factors, and there may be a more complex regulatory relationship.

Figure 1 The Cymbidium kanran owns the different colors and patterns Note: A: The plant type of Cymbidium kanran; B: The flower type of Cymbidium kanran

Flowering physiology has always been one of the hot topics in botany research. In long-term agricultural production and life, it has been observed that the length of light, temperature and external hormone application have very important effects on plant flowering. By studying the flowering regulation model of Arabidopsis thaliana, it was found that (Figure 2) the function of FT (Flowering locus T) protein is mainly to promote flower bud differentiation (Kardailsky et al., 1999; Corbesier et al., 2007). Four important flowering regulatory pathways (photoperiod pathway, GA pathway, vernalization pathway and autonomic flowering pathway) require transcription factors to activate the expression of FT genes to promote flowering of Arabidopsis thaliana (Kinmonth-Schultz et al., 2016; Wang et al., 2020). Long-day illumination can activate BvFT2 gene expression of long-day flowering sugarbeet (Beta vulgaris), but can not activate the expression of short-day sugarbeet related genes (Štorchová et al., 2019). The PdFT gene of peony (Paeonia suffruticosa) is related to its floral organ development (Zhu et al., 2014). Studies on flowering regulation in rice (Oryza sativa) (Kojima et al., 2002; Ogiso-Tanaka et al., 2013) and sorghum (Sorghum bicolor) (Nuñez and Yamada, 2017) found that RFT protein and Hd3a protein work together to promote flowering, and Hd3a gene and Arabidopsis thaliana ELF3 gene belong to FT homologous genes. In addition, a large number of FT homologous genes have been cloned in plants, such as Jili (Tribulus terrestris) (Putterill et al., 2013), wheat (Triticum aestivum) (Yan et al., 2006), chrysanthemum (Dendranthema morifolium) (Pan et al., 2010), camellia (Camellia japonica) (Sun et al, 2014; Fan et al, 2015; Lei et al, 2017) and cotton (Gossypium) (Guo et al., 2015). Further studies showed that over-expression of RFT1 in late flowering rice could transform it into early flowering rice (Pasriga et al., 2019). Early flowering chrysanthemums can also be cultivated by expressing FT genes in chrysanthemums (Jiang et al., 2010). In the tomato (Solanum lycopersicum) (Li et al., 2009), it was also achieved by heterogeneously expressing the MdFT genes of Arabidopsis thaliana and apple (Malus domestica). These results indicate that the expression of FT gene is significantly related to the regulation of photoperiod, hormone, temperature and autonomous flowering pattern of plants.

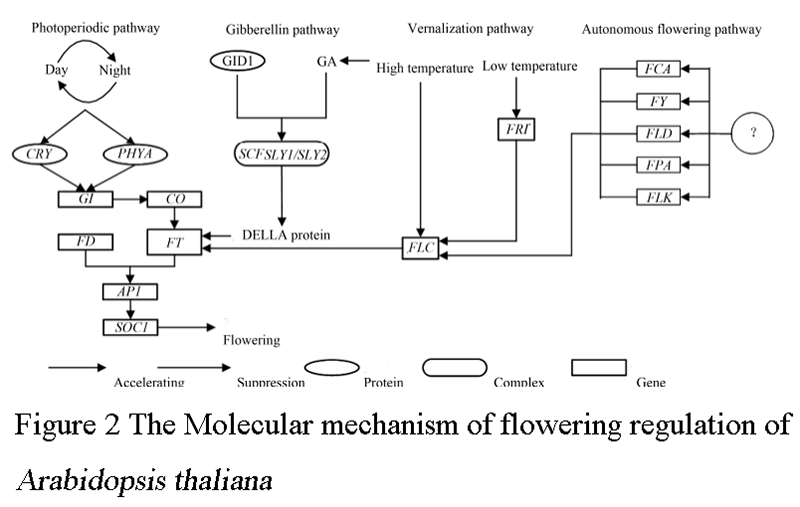

Figure 2 The Molecular mechanism of flowering regulation of Arabidopsis thaliana

The FT gene transcripts of C. ensifolium (HM803115.1), C. sinense (HM120862.1), C. faberi (HQ164434.1), C. goeringii (HM120863.1 and HM106985.1), Oncidium hybridum (KJ909968.1; EU583502.1) and Phalaenopsis aphrodite (JK720571.1) have been found in the existing NCBI database. Among them, FT genes of C. ensifolium and C. goeringii have been verified to promote flower bud formation and flowering in advance through Arabidopsis thaliana and Nicotiana tabacum transformation systems (Huang et al., 2012; Xiang et al., 2012; Li et al., 2013; Sun et al., 2013).

As an important member of the five most famous Chinese Cymbidium, there are few reports on its flowering mechanism. As ornamental flowers, the most important ornamental value is mainly reflected in the color and pattern. At present, the breeding method of Cymbidium kanran is mainly through hybridization and then sterile seeding and cultivation to seedlings, and the plants bloom after 5 years, which leads to a relatively long time limit for the selection of excellent varieties of Cymbidium kanran, making the flowering period the primary factor restricting the breeding of new varieties of Cymbidium kanran and industrial promotion. If we can break through the bottleneck of the flowering period of Cymbidium kanran, we can screen the varieties in advance and shorten the existing breeding cycle, which is of great significance to enhance the ornamental value and economic value of Cymbidium kanran. Combined with the existing research on flowering regulation of plants and the FT gene research reports of C. ensifolium and C. sinense in the early stage, this study focused on FT gene, cloned the FT gene of Cymbidium kanran, and studied the FT gene cycle and tissue-specific expression level of flowering and non-flowering Cymbidium kanran in the current year, in order to provide an important theoretical basis for shortening the breeding cycle of Cymbidium kanran in the future and establishing a complete flowering regulation mechanism model of Cymbidium kanran and breeding application.

1 Results and Analysis

1.1 FT gene amplification and molecular biological analysis of Cymbidium kanran

A 622 bp DNA fragment was obtained from the petal tissue of many Cymbidium kanran plants by PCR amplification. By sequencing analysis, the fragment contained 531 bp ORF sequence, which was more than 99% similar to the reported FT gene sequences of C. ensifolium (HM803115.1), C. sinense (HM120862.1), C. faberi (HQ164434.1), and C. goeringii (HM120863.1 and HM106985.1) through NCBI database comparison, which was 3 bp shorter than that of Oncidium hybridum (KJ909968.1; EU583502.1) and Phalaenopsis aphrodite (JK720571.1). The results showed that the amplified sequence was the FT gene sequence of Cymbidium kanran (Figure 3).

Through clustering analysis of FT gene sequences of Cymbidium kanran and 24 other plants, the results showed that Cymbidium kanran was highly related to C. ensifolium, C. goeringii, C. faberi and C. sinense in the same genus, followed by Dendrobium nobile and Oncidium hybridum in the same family. The 177 amino acid sequences corresponding to FT gene of Cymbidium kanran were highly similar to those of C. ensifolium, C. goeringii, C. faberi and C. sinense in the same genus (Figure 4). According to the above results, it can be seen that the FT gene sequence in Cymbidium has a high conserved type. Based on the previous reports on the function of FT gene sequences of C. ensifolium and C. goeringii, it can be concluded that the FT gene amplified in this paper may also play an important role in the regulation and bud induction of Cymbidium kanran.

Figure 4 The C. kanran FT gene sequence gene clustering and amino acid sequence analysis

1.2 Analysis of relative expression level of FT gene in leaves

By monitoring the FT gene expression levels in the leaves and pseudobulbs of the Cymbidium kanran in one flowering cycle, we could see that there were significant differences between the flowering group and the non-flowering group in the beginning to the end of the flowering period.

From January to February of the next year, the expression level of FT gene in the leaves of the non-flowering group fluctuated around 1.000, and the difference between the data groups was not significant. There was no significant difference between the flowering group and the non-flowering group in gene expression data from January to July and from October to February of the next year (P>0.5). However, in August and September, the critical period of bud differentiation of Cymbidium kanran, the FT gene expression level in the leaves of the flowering group was significantly 1.3 times higher than that of the non-flowering group, and the expression curve showed a trend of first rising and then decreasing (Figure 5). According to the regulation of FT gene expression in rice and Arabidopsis thaliana, FT gene is usually expressed in leaves in response to photoperiod, and FT protein is transported to the stem to promote flower bud differentiation. The up-regulated expression of FT gene in the flowering group and the expression of FT gene in the non-flowering group are also basically consistent with the previous report (Zhang et al., 2013).

Figure 5 The relative expression level of C. kanran FT gene of leaves in one year Note: ** P<0.01

1.3 Analysis of relative expression level of FT gene in pseudobulb

Pseudobulb is the most important nutritive tissue of cold orchid, and its leaves, roots and flowers grow from it. Complete plants were damaged after sampling. Before flower bud differentiation in January to July, the non-flowering group and flowering group shared one set of data. In August, after the flower bud differentiation of pseudobulb, FT gene quantitative detection was performed on flowering group and non-flowering group respectively, and the results showed that: During flower bud differentiation and flowering, FT gene expression levels in pseudobulbs in flowering group were extremely high, and the average expression levels from August to December were 1.56, 2.46, 3.10, 2.70 and 1.42 times of those in non-flowering group, respectively (Figure 6). By comparing the curves between the two groups, it can be seen that the FT gene expression level in the pseudobulbs of the flowering group is very high, which is consistent with the previous report that FT gene plays an important role in the regulation of plant flowering. Compared with leaves, high FT gene expression in pseudobulb can provide better molecular catalysis for flower bud differentiation and growth. It also showed that pseudobulbs were the most important tissues in the vegetative and reproductive growth of the Cymbidium kanran, and many regulatory mechanisms related to the physiological growth of the Cymbidium kanran were mainly reflected in pseudobulbs.

Figure 6 The relative expression level of C. kanran FT gene of pseudo bulbs in one year Note: ** P<0.01, *0.5<P<0.01

1.4 Changes of relative expression level of FT gene in flowering Cymbidium kanran tissue

FT gene expression analysis was carried out on the leaves, pseudobulbs and flower buds of flowering group Cymbidium kanran during flowering. The results showed that the expression level in leaves was the lowest among all vegetative organs, the expression level in pseudobulb was 11.3 times higher than that in leaves, and the expression level in pseudobulb was 37.9 times higher than that in leaves. Therefore, FT gene was slightly expressed in leaves, but greatly expressed in pseudobulb after the flowering of Cymbidium kanran. In floral organs, pseudobulbs could be expressed in the whole flower bud and perianth, and the expression rate was at least 15.80 times compared with leaves. At the early stage of flower bud growth in September, the total expression level of FT gene in the whole flower bud was slightly higher than that in the flower stem, with no significant difference. In October, flower buds gradually differentiated into flower buds and flower stems. At this time, the FT gene expression level in flower stems and flower buds was significantly lower than that in pseudobulbs, while the FT gene expression level in flower buds was slightly higher than that in flower stems, with no significant difference. With the development of petals in November, the expression level of FT gene in pseudobulb decreased, and was slightly higher than that in flower stem and significantly higher than that in petals, while FT gene in petals was significantly lower than that in flower stem and pseudobulb (Figure 7). By comparing the difference of FT gene expression levels in vegetative organs and floral organs, it can be seen that the relative expression level of FT gene in the leaves of Cymbidium kanran is very low, while the relative expression level in the pseudobulb and floral organs is very high. This result is similar to the previous report on C. faberi (Sun et al., 2013). These results suggest that FT gene plays an important role in regulating flower bud differentiation and flower organ growth on pseudobulb.

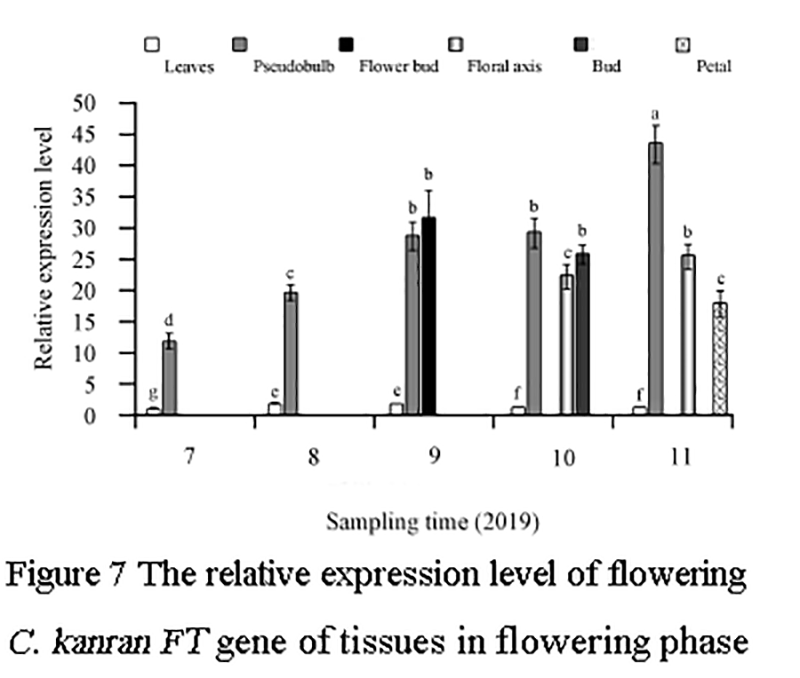

Figure 7 The relative expression level of flowering C. kanran FT gene of tissues in flowering phase

2 Discussion

FT gene has been widely studied as a popular flowering regulation gene in recent years. The study of molecular level of Cymbidium kanran stage through FT gene of Cymbidium kanran stage has important theoretical guiding significance to further reveal the regulation mechanism of Cymbidium kanran stage. Compared with previous reports on flowering regulation of orchids, this study not only amplified FT genes of orchids and analyzed molecular information, but also studied the expression levels of FT genes in leaves and pseudobulbs throughout the flowering cycle of orchids. The results also fully demonstrated that flowering regulation of orchids is positively correlated with FT gene expression. Compared with the non-flowering group of the same year, it was found for the first time that FT gene was up-regulated in both leaves and pseudobulbs during the flowering period, but the increment of expression was different. This indicated that the primary condition for promoting the flowering of Cymbidium kanran was to activate the expression of FT gene in pseudobulbs, so that the new shoots shifted from vegetative growth to reproductive growth. In the past, it was widely believed that under photoperiodic regulation, FT protein was synthesized in leaves and transported to meristem to promote flower bud differentiation. However, the regulation of Cymbidium kanran was obviously inconsistent with previous classical studies. Although changes in FT gene expression have been detected in leaves, the expression level of FT gene in flowering leaves is much lower than that in pseudobulbs. Therefore, how FT gene is activated and expressed in pseudobulb is the key to study the molecular mechanism of the regulation of Cymbidium kanran stage, and the biological function of Cymbidium kanran leaves in the regulation of flowering stage also needs to be further revealed. At present, our research team has started to conduct relevant studies on FT gene promoter sequence and upstream genes CONSTANS, FLOWERING LOCUS D, FLOWERING LOCUS C etc., in order to understand how FT gene activates high expression in pseudobulbs of Cymbidium kanran. On this basis, combined with the environmental factors, we further systematically elucidate the molecular mechanism of the flowering regulation of the Cymbidium kanran.

3 Materials and Methods

3.1 Pretreatment and sample collection of Cymbidium kanran

The experiment was carried out from December 2017 to February 2019, which was the complete flowering period of the Cymbidium kanran. All Cymbidium kanran are flowering Cymbidium kanran in 2017, growing healthily. They are all planted in the experimental greenhouse of Zhejiang Subtropical Crop Research Institute, and grow naturally.

Leaves of Cymbidium kanran were collected once a month from 9: 00 to 11: 00 am on Monday of the same month, and 3 biological replicates were collected within a month and marked for classification after flowering. Pseudobulbs were collected from 9: 00 to 11: 00 am on the first Monday of every month. Use a sharp scalpel to cut off the surface of the pseudobulb at the cuticle of the stem node (flower buds need to be removed during flowering). The cuticle of the pseudobulb cut off should contain as little starch and polysaccharide as possible for liquid nitrogen grinding and extraction of high quality RNA. Three biological replicates were taken each time. After flower bud differentiation, samples were taken respectively according to flowering group and non-flowering group. After flowering (the outer three petals were basically in the same plane), tepals were taken respectively (a single flower with six petals inside and outside were taken for mixed detection), and 3 biological replicates were taken each time. The sampling times and repetitions (Table 1). All samples were frozen in liquid nitrogen and stored at -80 ℃. Nucleic acid was extracted in batches.

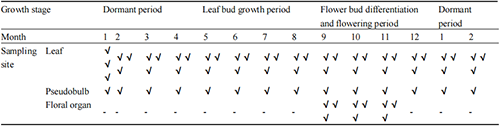

Table 1 Tissues and organs from which RNA is extracted at different stages Note: “√” indicates the number of samples

3.2 RNA extraction and cDNA library construction of Cymbidium kanran

RNA extraction kit (RN09-EASYspin plant RNA rapid extraction kit, Beijing Aidlab Biotechnologies Co., Ltd.) was used to extract total RNA from the covers, leaves (complete appearance and free from diseases and pests) and pseudobulbs of Cymbidium kanran, respectively. After ensuring purity, reverse transcription (PrimeScript™ II 1st Strand cDNA Synthesis Kit, TaKaRa) was performed to complete the construction of cDNA library.

3.3 FT gene amplification of Cymbidium kanran

According to the sequences reported by NCBI of C. ensifolium (HM803115.1) and C. goeringii (HM120863.1 and HM106985.1), Bioedit software was used to compare the second-generation transcriptome database of Cymbidium kanran organs previously completed by our research group, and part of FT gene sequences of Cymbidium kanran were extracted, and primers were designed for amplification (Table 1). High fidelity DNA polymerase was used for PCR reaction. The amount of reagent and template (cDNA obtained from petal RNA of Cymbidium kanran with different flower colors) was added according to the instructions. Reaction conditions: predenaturation at 95 °C for 1 min, denaturation at 98 °C for 10 s, annealing at 56 °C for 15 s, extension at 72 °C for 1 min, a total of 30 cycles, then fully extended at 72 °C for 10 min and stored at -20 °C.

3.4 Fluorescence quantitative PCR detection

According to the sequencing results, fluorescence quantitative primers for FT gene of Cymbidium kanran were designed (Table 2). ACTIN was the internal reference gene, and fluorescence quantitative PCR (QuantStudioTM 7 Flex, Applied Biosystems) was performed using a special fluorescence quantitative kit (TB Green® Premix Ex Taq™ II (Tli RNaseH Plus), Bulk, TaKaRa). The standard procedure of two-step PCR amplification was used: predenaturation at 95 °C for 30 s, PCR reaction at 95 °C for 5 s and at 60 °C for 30 s, a total of 40 cycles.

Table 2 The primers sequence

Authors’ contributions

YZ and ZZ were the executor of the experimental design and study. YZ, ZZ and YYP completed the data analysis and wrote the first draft of the paper. FSB and XW participated in the experimental design and analysis of experimental results. YZ was the proposer and leader of the project, directing experimental design, data analysis, paper writing and modification. All authors read and approved the final manuscript.

Acknowledgments

This study was jointly supported by the Natural Science Foundation of Zhejiang Province (LY19C150003), the Wenzhou Agricultural New Variety Breeding Cooperative Group Project (2019ZX004-3) and the Zhejiang Academy of Agricultural Sciences Youth Science and Technology Talent Training Project (2019R26R08E01).

References

Corbesier L., Vincent C., Jang S., Fornara F., Fan Q., Searle I., Lionel G., Colin T., and George C., 2007, Ft protein movement contributes to long-distance signaling in floral induction of Arabidopsis. Science, 316(5827): 1030-1033.

https://doi.org/10.1126/science.1141752

PMid:17446353

Fan Z.Q., Li J.Y., Li X.L., Wu B., Wang J.Y., Liu Z.C., and Yin H.F., 2015, Genome-wide transcriptome profiling provides insights into floral bud development of summer-flowering Camellia azalea, Scientific Reports, 5: 9729.

https://doi.org/10.1038/srep09729

PMid:25978548 PMCid:PMC4432871

Guo D., Li C., Dong R., Li X., Xiao X., and Huang X., 2015, Molecular cloning and functional analysis of the FLOWERING LOCUS T (FT) homolog GhFT1 from Gossypium hirsutum, Journal of Integrative Plant Biology, 57(6): 522-533.

https://doi.org/10.1111/jipb.12316

PMid:25429737

Huang W., Fang Z., Zeng S., Zhang J., Wu K., Chen Z., and Duan J., 2012, Molecular cloning and functional analysis of three FLOWERING LOCUS T (FT) homologous genes from Chinese Cymbidium, International Journal of Molecular Sciences, 13(9): 11385-11398.

https://doi.org/10.3390/ijms130911385

PMid:23109860 PMCid:PMC3472752

Jiang D., Liang J.L., Chen X.L., Hong B., Jia W.S., and Zhao L.J., 2010, Transformation of Arabidopsis flowering gene FT to from cut chrysanthemum 'Jinba' by Agrobacterium mediate, Yuanyi Xuebao (Acta Horticulturae Sinica), 37(3): 441-448.

Kardailsky I., Shukla V.K., Ahn J.H., Dagenais N., Christensen S.K., Nguyen J.T., and Weigel D., 1999, Activation tagging of the floral inducer FT, Science, 286(5446): 1962-1965.

https://doi.org/10.1126/science.286.5446.1962

PMid:10583961

Kinmonth-Schultz H.A., Tong X., Lee J., Song Y.H., Ito S., Kim S.H., and Imaizumi T., 2016, Cool night‐time temperatures induce the expression of CONSTANS and FLOWERING LOCUS T to regulate flowering in Arabidopsis. New Phytologist, 211(1): 208-224.

https://doi.org/10.1111/nph.13883

PMid:26856528 PMCid:PMC4887344

Kojima S., Takahashi Y., Kobayashi Y., Monna L., Sasaki T., Araki T., and Yano M., 2002, Hd3a, a rice ortholog of the Arabidopsis FT gene, promotes transition to flowering downstream of Hd1 under short-day conditions, Plant and Cell Physiology, 43(10): 1096-1105.

https://doi.org/10.1093/pcp/pcf156

PMid:12407188

Lei H., Su S., Ma L., Wen Y., and Wang X., 2017, Molecular cloning and functional characterization of CoFT1, a homolog of FLOWERING LOCUS T (FT) from Camellia oleifera, Gene, 626: 215-226.

https://doi.org/10.1016/j.gene.2017.05.044

PMid:28546125

Li W.M., Wang S.S., Yao Y.X., Zhao C.Z., Hao Y.J., and You C.X., 2009, Genetic transformation of apple MdFT gene into tomato, Yuanyi Xuebao (Acta Horticulturae Sinica), 36(9): 1255-1260.

Li X.B., Luo J., Yan T. T., Xiang L., Jin F., Qin D., Sun C.B., and Xie M., 2013, Deep sequencing-based analysis of the Cymbidium ensifolium floral transcriptome, PLoS One, 8(12): e85480.

https://doi.org/10.1371/journal.pone.0085480

PMid:24392013 PMCid:PMC3877369

Nuñez F.D., and Yamada T., 2017, Molecular regulation of flowering time in grasses, Agronomy, 7(1): 17.

https://doi.org/10.3390/agronomy7010017

Ogiso-Tanaka E., Matsubara K., Yamamoto S I., Nonoue Y., Wu J., Fujisawa H., and Yano M., 2013, Natural variation of the RICE FLOWERING LOCUS T1 contributes to flowering time divergence in rice, PLoS One, 8(10): e75959.

https://doi.org/10.1371/journal.pone.0075959

PMid:24098411 PMCid:PMC3788028

Pan C.B., Zhang Q.X., Pan H.T., and Sun M., 2010, Clone and expression analysis of FLOWERING LOCUS T in Chrysanthemum morifolium Ramat, Yuanyi Xuebao (Acta Horticulturae Sinica), 37(5): 769-776.

Pasriga R., Yoon J., Cho L.H., and An G., 2019, Overexpression of RICE FLOWERING LOCUS T1 (RFT1) induces extremely early flowering in rice, Molecules and Cells, 42(5): 406.

Putterill J., Zhang L., Yeoh C C., Balcerowicz M., Jaudal M., and Gasic E.V., 2013, FT genes and regulation of flowering in the legume Medicago truncatula, Functional Plant Biology, 40(12): 1199-1207.

https://doi.org/10.1071/FP13087

PMid:32481188

Štorchová H., Hubáčková H., Abeyawardana O A., Walterová J., Vondráková Z., Eliášová K., and Mandák B., 2019, Chenopodium ficifolium flowers under long days without upregulation of FLOWERING LOCUS T (FT) homologs, Planta, 250(6): 2111-2125.

https://doi.org/10.1007/s00425-019-03285-1

PMid:31584118

Sun C.B., Xiang L., Li X.B., Qin D.H., Li B.J., Guo F.Q., and Wu C., 2013, Isolation of Flowering Locus T ortholog and the effects on blooming of Cymbidium faberi, Zhongguo Nongye Kexue (Scientia Agricultura Sinica), 46(7): 1419-1425.

Wang S., Li H., Li Y., Li Z., Qi J., Lin T., Yang C.Y., Zhang Z.H., and Huang S.W., 2020, FLOWERING LOCUS T improves cucumber adaptation to higher latitudes, Plant Physiology, 182(2): 908-918.

https://doi.org/10.1104/pp.19.01215

PMid:31843803 PMCid:PMC6997709

Xiang L., Li X., Qin D., Guo F., Wu C., Miao L., and Sun C., 2012, Functional analysis of FLOWERING LOCUS T orthologs from spring orchid (Cymbidium goeringii Rchb. f.) that regulates the vegetative to reproductive transition, Plant Physiology and Biochemistry, 58: 98-105.

https://doi.org/10.1016/j.plaphy.2012.06.011

PMid:22796899

Yan L., Fu D., Li C., Blechl A., Tranquilli G., Bonafede M., Sanchez A., Valarik M., Yasuda S., and Dubcovsky J., 2006, The wheat and barley vernalization gene VRN3 is an orthologue of FT, Proc. Nat. Acad. Sci., 103(51): 19581-19586.

https://doi.org/10.1073/pnas.0607142103

PMid:17158798 PMCid:PMC1748268

Zhang J., Wu K., Zeng S., Silva J A T., Zhao X., Tian C E., Xia H.Q., and Duan J., 2013, Transcriptome analysis of Cymbidium sinense and its application to the identification of genes associated with floral development, BMC Genomics, 14(1): 279.

https://doi.org/10.1186/1471-2164-14-279

PMid:23617896 PMCid:PMC3639151

Zhu F.Y., Liu C.J., Xue J.Q., Wang S.L., Zhang P., Ren X.X., and Zhang X.X., 2014, Isolation of florigen gene PdFT and its effects on flowering of tree peony (Paeonia delavayi Franch.), Zhongguo Nongye Kexue (Scientia Agricultura Sinica), 47(13): 2613-2624.
