Microsatellite, also known as Simple Sequence Repeats (SSR), refers to short tandem repeating sequences of 2-6 base pairs nucleotide units (He, 1998). It is the most rapid variable DNA sequence in genome, not only with high polymorphism but also with high conservation and universality among in the relatives (Kashi and King, 2006). Therefore, microsatellite markers would be one of the most effective genetic tools for the integration of information among the genomes of closely relative species (Li et al., 2009), that has become the most widely applied molecular markers in genetic research.

Microsatellite markers have been widely used for genetic mapping and germplasm identification etc in many plants. In recent years, microsatellite markers were also rapidly developed in trees, having been widely used in the tree studies of fingerprinting, genetic map building and population genetic analyzing etc. (González-Martínez et al., 2006). In the studies of modern molecular genetics, microsatellite markers would be an important tool in the different research fields for genotyping, genetic map building, QTL mapping, as well conservation of genetic germplasm, protection of endangered species, gene flow monitoring, genetic drift research, gene mutation and systematic analysis (Huang, 2002). The typical procedures for development of microsatellite markers would be including library construction, enrichment of microsatellite sequences, sequencing, microsatellite searching and primer designing that no doubt might be cumbersome and expensive processes limiting the development and application of microsatellite markers. Although microsatellites can also mined by using the resourced sequences in many different species, however, comparing to the model animals and plants as well as important crops, it is much more limited of genomic information in most of forest tree species.

EST sequencing is an important means of functional studies of genes. A large-scale EST sequencing of trees have been done in the forest representatives of pine, poplar and eucalyptus, there was an abundant EST sequence information of these species deposited in public databases (Sterky et al., 2004; Allona et al ., 1998; Keller et al., 2009), which provides important sequence resources for developing the microsatellite marker in these species. In fact, pine, eucalyptus and poplar are known leading industrial timber species in China and even in the world, developing the resources of microsatellite markers would be an important to strengthen the genetic studies of these species.

The characteristics of microsatellite sequences are an important indicator to understand the genomic differences of different species. Microsatellite is widely distributed in the genome of eukaryote, exiting not only in the region of introns and intervals of genes, also presenting in the coding sequence of gene. Because microsatellite sequences are prone to variations, the genes containing the microsatellite are more subjected to being mutations than that of non-microsatellite.

A large number of studies have shown that microsatellite instability is related to human cancer and neurological diseases occurring (Lothe, 1997; Toth et al., 2000). In the evolutionary process, the SSR within the gene region will be influenced by the selection of convergence.

The studies on the microsatellite in the exon sequence of the poplar genome revealed that the microsatellites with three-base repeat units in the exons of poplar genome were far more than other types of microsatellites (Li et al., 2009). Comparing to microsatellites with other repeat types, the microsatellite with three-base repeat unit had minimum impacts on open reading frame of gene, enrichment of three-base repeat microsatellite showed that microsatellite in the exon region were influenced by the selection of genetic code in the evolutionary process.

Currently, the studies of microsatellite in gene region mostly focused on humans and model animals and plants, especially in human cancer research (Lothe, 1997; Brinkmann et al., 1998; Toth et al., 2000). It rarely reported on the research of microsatellite in gene regions in forest tree species. Through comparison of microsatellite in the gene region in different tree species, it not only provides important parameters for understanding the differentiation of the genomes of different tree species, but also provides a reference of bioinformatics for how to make use of these sequence resources to develop microsatellite markers with high polymorphism.

1 Results and analysis
1.1 Analysis of microsatellite abundance among the expressed sequence pine, poplar and eucalyptus
There were 2,465, 4,599 and 5,612 of EST sequences containing microsatellites with repeating units from 2 to 5 bp in length by using Sputnik software to search each 30,000 EST sequences of pine, poplar and eucalyptus, respectively. The frequency of microsatellite occurring in EST sequences was 8.2% in pine, 15.3% in poplar and 18.7% in eucalyptus respectively. The results showed that the frequency of microsatellite occurring in EST sequences was quite close between eucalyptus and poplar, but EST-SSR abundance of the pine was significantly lower than that of the poplar and eucalyptus.

Analysis on repeat unit length of EST-SSR in three trees found that microsatellite abundances in eucalyptus and poplar were very close except the abundance of 5 base repeat unit microsatellites, but quite different in pine (Table 1). The results also showed that the frequency of microsatellite with three-base repeat unit were more than other types of microsatellites in three tested trees. It is noteworthy that the abundance of other three repeat unit microsatellites except microsatellites with three-base repeat unit in eucalyptus and poplar reduced with the increases of the length of repeat units, whereas increased along with the increase of length of repeating unit in pine. Genetic code consists of three base nucleotides. Generally speaking, gene would have higher fault-tolerant to mutations of three base insertion or deletion, long-term selection might lead to enrich the microsatellites with three-base repeat unit in the gene region, the results of this study might provide new direct evidence for this statement. We also noted that enrichment of three-base repeat unit microsatellites in pine (64.0%) were greater than that in poplar (45.2%) and eucalyptus (48.2%), the reason might be that the time of pine genome formation was far earlier than that of poplar and eucalyptus, this indicated that the pine genome might be subjected to a very strong impact in codon selection during the gene evolution.

Table 1 Comparative analysis of different types of microsatellites in expressed sequences in pine, poplar and eucalyptus

Law of abundance of microsatellite in gene region and in different types varied with the length of repeat unit was significantly differences in pine from eucalyptus and poplar; it is yet to be identified in many tree species whether this is common differences of microsatellite in gene region among needle trees and broad-leaf trees. Although we couldn’t give a definitive conclusion to the puzzle due to EST sequences of other species at present very limited, the results of this study revealed a very interesting phenomenon.

1.2 Nucleotide composition of pine dominant repeat unit of EST-SSR in pine poplar and eucalyptus
Studies have shown that SSR site is a hotspot region of gene recombination occurring (Jeffreys et al., 1998), some repeat sequences of microsatellite such as repeat units of GT, CA, CT, and GA often direct impact on the DNA recombination through affecting the structure of DNA (Biet et al., 1999). And also variations of the numbers of repeat units of microsatellite in expressed sequences facilitate the open reading frame changing, thus affecting the gene encoded product. So, because of the influence of the selection, the differentiation of nucleotide composition in dominant repeat unit in different species will occur in the long-term evolutionary process.

Analysis on nucleotide composition of microsatellite repeat unit in expression sequence (repeat motif) in three species showed that the base composition of microsatellite with highest frequency were two base repeat unit of AG/TC in poplar and eucalyptus, while TA/AT in the pine. Whereas the three-base repeat unit of AAG/TTC occurred in the three species with the highest frequency. The composition of dominant four repeating unit was AAAG/TTTC in pine and poplar, but AGTG/TCAC in the eucalyptus. There were different base compositions of dominant penta-nucleotide repeat unit in three tree, CTGCG in pine, AAAAG/TTTTC in poplar and CAAAG in eucalyptus. So overall, the base compositions of dominant repeat units with different length had species-specific characteristics, there was no any significant regularity of differentiation in pine, poplar and eucalyptus (Table 2).

Table 2 The nucleotide compositions and frequency of the dominant repeat units of microsatellites in pine, poplar and eucalyptus

As the variations of the repeating numbers of repeat unit of microsatellite in gene region might affect the gene expressed products, mutations in repeat unit of microsatellite might lead to gene silencing or the occurrence of selective removing. Therefore, analysis of base compositions of the dominant repeat unit could help to understand the gene of which the nucleotide composition of the repeat unit had a higher mutation receptivity.

1.3 Length variations of microsatellites with different length of repeat units in pine, poplar and eucalyptus
The length variations of microsatellites containing repeat unit of two bases, three bases, four and five bases were shown in figure for pine, poplar and eucalyptus (Figure 1). A different part of each pie chart (Figure 1) represented the repeating numbers of different length of each repeat unit, more repetitions showed greater differentiation. Overall, the longer of the length of repeat unit of microsatellite in the EST sequences was, the less variation of repetitions of repeat was in pine, eucalyptus and poplar trees. However, in three species, the rate of repeat unit losing or gaining was not significantly difference in five nucleotide repeat unit microsatellites as well as in four repeat unit microsatellites. As the differentiation of the sequence length has been exhibited the rate of repeat unit losing or gaining of microsatellite, this feature close associated with the polymorphisms of microsatellite sites. The results of the figure showed that there was higher polymorphism in microsatellites containing short repeat unit than in microsatellites containing long repeat unit in the three species. This would be a kind of reference for developing highly polymorphic microsatellite markers.

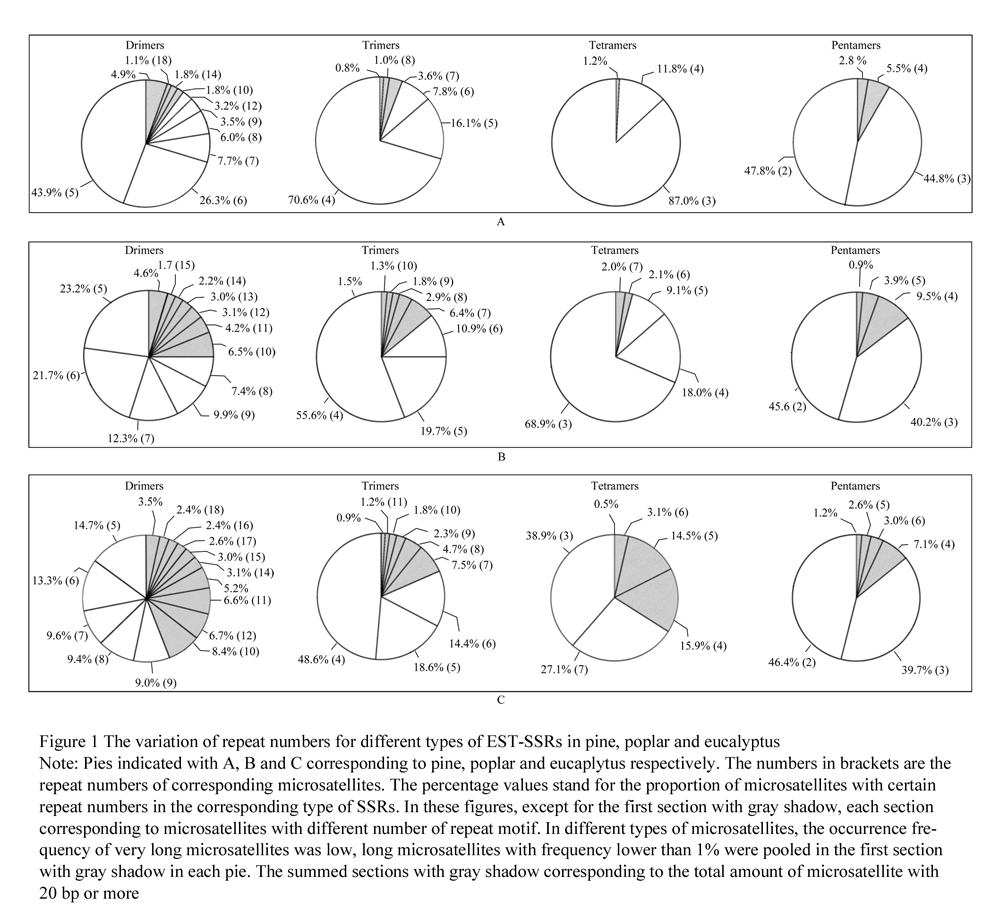

Figure 1 The variation of repeat numbers for different types of EST-SSRs in pine, poplar and eucalyptus

We had the searched microsatellites divided into two categories, the first class included the SSRs with 20 bp or more in length, the second class including these SSRs with 12 bp more in and 20 bp less (Temnykh et al., 2001). The first class SSRs had a higher polymorphism than the second class SSRs, of which the law that Weber (1990) firstly discovered in experimental data of microsatellite in human had been confirmed in many organisms. The second class generated less mismatching sites in slipping chain matching because of the short fragment length of SSR, so the polymorphism of the second class SSRs was not as the first class. Mutation rate of SSR sequences with less than 12 bp fragment length was no any difference with other sequences, which would have a random variation in trend. In this study, the 33.3% of EST-SSRs in eucalyptus belonged to in the first category and 18.9% in poplar but only 8.1% in the pine. As mentioned above data, the largest proportion of Eucalyptus EST containing high polymorphic SSRs was eucalyptus, followed by poplar and pine trees. And the number of first class SSR in eucalyptus and pine both were higher than in poplar (Figure 1). Above mentioned results showed that the abundance of pine SSR in gene region was significantly lower than that in poplar and eucalyptus, while enrichment of three-base repeat microsatellites was also significantly higher than that of pine and poplar, these results might be connected to codon selection, which indicated that microsatellite in gene region of pine should be accumulated with very strong selection pressure. Microsatellite length variations also showed that the content of microsatellites with high polymorphism in the pine trees was significantly lower, which might also be due to codon selection. If the microsatellites in gene region had some strong cumulative selection pressure in pine in the evolutionary process, the content of microsatellites in gene region and enrichment of microsatellites with three-base repeat would be made clear differentiation in pine compared to the other two species, and the proportion of microsatellites with high polymorphism would be diminished accordingly.

2 Discussions
Microsatellites widely distributed in eukaryotic genomes (Ding and Tong, 1999). The latest studies have found that microsatellites have many different functions, such as affecting gene expression, regulation and function. Compared to other sequences in the genome, microsatellites have high frequency of variation that is considered one important factor leading to generate and maintain the variation of quantitative trait in the process of genome evolution (Tautz et al., 1986; Kashi et al., 1997). While a large number of studies had found that instability of microsatellite closely related to human cancer and neurological diseases (Lothe, 1997; Toth et al., 2000), such as microsatellite instability leading to the incidence of breast cancer, colorectal cancer, stomach cancer, prostate cancer, esophageal cancer thyroid cancer etc. (Lin and Sun, 2003, Wujing Yixueyuan Xuebao, 12(3): 231-233). Therefore, the characteristics of microsatellite sequences would be the important parameters to understand of the genome in different species.

A large number of microsatellite analyses on bioinformatics have been reported. Representatively, Dieringer and Schlotterer (2003) found two significantly different patterns in the course of microsatellite variation through bioinformatics analysis on a large number of microsatellites in the nine species. However, microsatellite analysis of bioinformatics mainly focused on fungi, human beings and mode of plant (Brinkmann et al., 1998; Lothe, 1997; Toth et al., 2000). For forest tree species, most of microsatellite analysis were yet limited to be experimental analysis on a small number of microsatellite loci (Wyman et al., 2003), whereas a large number of microsatellite bioinformatics analysis were also limited to a single species, such as whole genome sequenced poplar (Tuskan et al., 2004; Li et al., 2009). So far, it is yet to report comparative study of the characteristics of microsatellite more than one species, which might be due to lack of the genomic sequence resources. Instead of whole genome sequencing, EST sequencing of forest tree species was much more popular (Sterky et al., 2004; Allona et al., 1998; Keller et al., 2009). A plenty of EST sequences of pine, poplar and eucalyptus in public databases would facilitate this research.

Overall, the dominant microsatellites in gene regions displayed the similar trends in the length of repeat unit and the frequency of repeat unit losing and gaining in this study, but the abundance and the number of microsatellites with high-frequency variation had a significant differentiation occurring between pine and poplar or eucalyptus compared. Pine is a kind of conifer species, while eucalyptus and poplar are kinds of the broadleaf species. Our findings did reveal whether there is the common difference between the genomes of needle and broadleaf species, it does no doubt need to be analyzed in more tree species. However, the released public databases of EST sequences of other needle and broadleaf species are still very limited and insufficient to carry out the relevant analysis of bioinformatics. In recent years, with the rapid development of next generation high-throughput sequencing technology, transcriptome sequencing has being conducted on more and more tree species, of which will be able to draw a clear answer to this question.

3 Materials and methods
3.1 The sequence resources and microsatellite sequence finding
EST sequences of Pine, poplar and eucalyptus were downloaded from NCBI database by the website of http://www.ncbi.nlm.nih.gov/dbEST/index.html. There were differences in the number of EST sequences sequenced in these species, in order to ensure the results with comparability to each species, 30,000 sequences were randomly selected to search microsatellite sequences by using the program of Sputnik developed by C. Abajian of  University of Washington), The finding process followed with the default threshold, and the minimum Score was set to nine, the ranges of all microsatellites with repeating units from 2 to 5 bp in length were covered.

3.2 Analysis on microsatellite length variation and nucleotide composition of dominant repeating units
We adopted the EXCEL tool to classify the nucleotide compositions of repeat units of microsatellites, in order to find the highest proportion of the repeat unit with the same base composition in different types of microsatellites and figure out the dominant base composition in different types of microsatellite units through the corresponding repeat unit. Of microsatellite length variation was carried out by the mapping functions of the EXCEL. Pie charts were drawn based on microsatellites different length repeat unit of which each sector corresponding to the different microsatellite in length (the microsatellite with the 1% frequency or less was merged, each sector corresponding to the length of the microsatellite and the proportion of the microsatellite were marked with tie line in the corresponding sector), the number of sectors stood for the variation of microsatellite length, the more the sectors had, the faster the rate of repeat unit losing and gaining in the corresponding type of microsatellites, thus the corresponding type of microsatellites generally has higher polymorphism.

Author’s contributions
MMY, DXG and SXL are the persons who carried out this study. TMY conceived the project and designed the analysis procedures as well as wrote and revised manuscript. All authors had read and agreed the final text.

Acknowledgements
This research was jointly sponsored by National foundation of Natural Sciences (31070543, 30971609) and  Key Project of Jiangsu Foundation of Natural Sciences for High Education (10KJA180018).  Authors appreciated two anonymous reviewers with their critical comments. In this paper we mentioned some chemical and reagent suppliers and sequencing service providers, that doesn't mean we would like to recommend or endorse the production of theirs.

References
Allona I., Quinn M., Shoop E., Swope S., St Cyr S., Carlis J., Riedl J., Retzel E., Campbell M.M., Sederoff R., and Whetten R.W., 1998, Analysis of xylem formation in pine by cDNA sequencing, PNAS, 95(16): 9693-9698
http://dx.doi.org/10.1073/pnas.95.16.9693

Biet E., Sun J.S., and Dutreix M., 1999, Conserved sequence preference in DNA binding among recombination proteins: An effect of ssDNA secondary structure, Nucleic Acids Research, 27(2): 596-600
http://dx.doi.org/10.1093/nar/27.2.596 PMid:9862985 PMCid:148220

Brinkmann B., Klintschar M., Neuhuber F., Hühne J., and Rolf B., 1998, Mutation rate in human microsatellites: Influence of the structure and length of the tandem repeat, The American Journal of Human Genetics, 62(6): 1408-1415
http://dx.doi.org/10.1086/301869 PMid:9585597

Ding Y., and Tong T.J., 1999, Microsatellite Instability : A potential tool for the study of life sciences, Progress in Physiological Sciences, 30(4): 292-295
PMid:12532820

Dieringer D., and Schlotterer C., 2003, Two distinct modes of microsatellite mutation processes: Evidence from the complete genomic sequences of nine species, Genome Research, 13(10): 2242-2251
http://dx.doi.org/10.1101/gr.1416703 PMid:14525926 PMCid:403688

Eckenwalder J.E., 1996, Systematicas and evolution of populus, In: Stettler R.F., Bradshaw H.D., Heilman P.E., and Hinckley T.M., eds, Biology of populus and its implications for management and conservation, NRC Research Press, Ottawa, Canada, pp.7-30

Gentles A.J., and Karlin S., 2001, Genome-scale compositional comparisons in eukaryotes, Genome Research, 11(4): 540-546
http://dx.doi.org/10.1101/gr.163101 PMid:11282969    PMCid:311039

González-Martínez S.C., Krutovsky K.V., and Neale D.B., 2006, Forest-tree population genomics and adaptive evolution, The New Phytologist, 170(2): 227-238
http://dx.doi.org/10.1111/j.1469-8137.2006.01686.x  PMid:16608450

He P., 1998, Abundance, polymorphism and applications of microsatellite in eukaryote, Yichuan (Hereditas), 20(4): 42-47

Huang Q.J., Su X.H., and Zhang X.H., 2002, Microsatellite marker and its application in tree genetics and breeding, Shijie Linye Kexue (World Forestry Research), 15(3): 14-21

Jeffreys A.J., Neil D.L., and Neumann R., 1998, Repeat instability at human minisatellites arising from meiotic recombination, The EMBO Journal, 17(14): 4147-4157
http://dx.doi.org/10.1093/emboj/17.14.4147 PMid:9670029 PMCid:1170747

Jewell E., Robinson A., Savage D., Erwin T., Love C.G., Lim G.A.C., Li X., Batley J., Spangenberg G. C., and Edwards D, 2006, SSR primer and SSR taxonomy tree: Biome SSR discovery, Nucleic Acids Research, 34(Web Server issue): W656-W659

Kashi Y., King D., and Soller M., 1997, Simple sequence repeats as a source of quantitative genetic variation, Trends ina Genetics, 13(2): 74-78

Katti M.V., Ranjekar P.K., and Gupta V.S., 2001, Differential distribution of simple sequence repeats in eukaryotic genome sequences, Molecular Biology and Evolution, 18(7): 1161-1167
http://dx.doi.org/10.1093/oxfordjournals.molbev.a003903 PMid:11420357

Keller G., Marchal T., SanClemente H., Navarro M., Ladouce N., Wincker P., Couloux A., Teulières C., and Marque C., 2009, Development and functional annotation of an 11 303-EST collection from eucalyptus for studies of cold tolerance, Tree Genetics & Genomes, 5(2): 317-327
http://dx.doi.org/10.1007/s11295-008-0184-7

Lothe R.A., 1997, Microsatellite instability in human solid tumors, Molecular Medicine Today, 3(2): 61-68
http://dx.doi.org/10.1016/S1357-4310(96)10055-1

Lu S.J., and Li X.W., 1999, Origin, phylogeny and spreading of Pinus, Xibei Linxue Xueyuan Xuebao (Journal of Northwest Forestry University), 14(3): 1-5

Li S.X., Yin T.M., Wang M.X., and Tuskan G.A., 2009, Characterization of microsatellites in the coding regions of the Populus genome, Mol Breeding, DOI: 10.1007/s11032-010-9413-5
http://dx.doi.org/10.1007/s11032-010-9413-5

Morgante M., Hanafey M., and Powell W., 2002, Microsatellites are preferentially associated with nonrepetitive DNA in plant genomes, Nature Genetics, 30(2): 194-200
http://dx.doi.org/10.1038/ng822 PMid:11799393

Sterky F., Bhalerao R.R., Unneberg P., Segerman B., Nilsson P., and Brunner A.M., 2004, A Populus EST resource for plant functional genomics, PNAS, 101(38): 13951-13956
http://dx.doi.org/10.1073/pnas.0401641101 PMid:15353603 PMCid:518859

Tautz D., Trick M., and Dover G.A., 1986, Cryptic Simplicity in DNA is a major Source of genetic variation, Nature, 322(6080): 652-656
http://dx.doi.org/10.1038/322652a0 PMid:3748144

Temnykh S., Declerck G., Lukashova A., Lipovich L., Cartinhour S., and McCouch S., 2001, Computational and experimental analysis of microsatellites in Rice (Oryza sativa L.): Frequency, length variation, transposon associations, and genetic marker potential, Genome Research, 11(8): 1441-1452
http://dx.doi.org/10.1101/gr.184001 PMid:11483586 PMCid:311097

Toth G., Gaspari Z., and Jurka J., 2000, Microsatellites in different eukaryotic genomes: Survey and analysis, Genome Research, 10: 967-981
http://dx.doi.org/10.1101/gr.10.7.967 PMid:10899146 PMCid:310925

Tuskan G.A., Gunter L.E., Yang Z.K., Yin T.M., Sewell M.M., and DiFazio S.P., 2004, Characterization of microsatellites revealed by genomic sequencing of Populus Trichocarpa, Can For Research, 34(1): 85-93
http://dx.doi.org/10.1139/x03-283

Weber J.L., 1990, Informativeness of human (dC-dA)n (dG-dT)n polymorphisms, Genomics, 7(4): 524-530
http://dx.doi.org/10.1016/0888-7543(90)90195-Z

Wyman J., Bruneau A., and Tremblay M.F., 2003, Microsatellite analysis of gen etic diversity in four populations of Populus tremuloides in Quebec, Can. J. Bot., 81(4): 360-367
http://dx.doi.org/10.1139/b03-021

Kashi Y., and King D.G., 2006, Simple sequence repeats as advantageous mutators in evolution, Trends in Genetics, 22(5): 253-259
http://dx.doi.org/10.1016/j.tig.2006.03.005 PMid:16567018
